DSP Series
THERMAL PAD MATERIALS

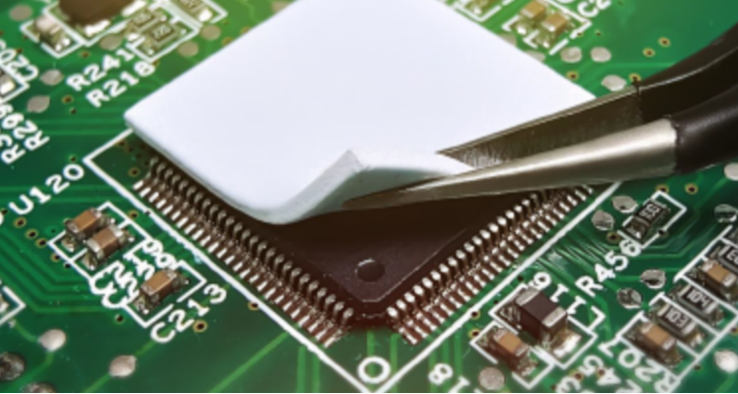

Thermal Pad
A soft, compressible, pre-formed sheet designed to fill gaps between heat-generating components and heat sinks, providing efficient heat transfer and reliable electrical insulation.
AVAILABLE FORMATS / PRODUCT TYPES
Sheet
Roll
Custom Die-Cut Parts
Get Product Resources
Key Parameters Parameters
Thermal Conductivity
1.0–12.0
W/m·K
Dielectric Breakdown Voltage
6–7
kV/mm
Volume Resistivity
1×1012–1×1013
Ω·cm
Hardness
Shore 00
45–90
Thickness Range
0.2–12.0
mm
Operating Temperature
-40 ~ 120
°C
Key Properties
- Pre-formed solid sheet for easy processing, converting, and assembly
- Medium-to-high thermal conductivity for a wide range of power electronics applications
- Excellent electrical insulation to support safe system operation
- Available with single- or double-sided adhesive options for easier assembly
- Wide operating temperature range for demanding thermal cycling environments
- Reliable flame-retardant performance for safety-focused designs
Material Advantages Advantages
APPLICATION SCENARIOS
Application Scenarios
Desunergy thermal pads are widely used in inverters, energy storage battery systems, and EV charging equipment to improve heat dissipation from high-power components and support overall system reliability and service life.
Inverters
Used between IGBT modules and heat sinks, and between AC/DC inductors and magnetic cores, to support efficient heat dissipation for core power devices.
Energy Storage Battery Systems
Applied between cells and liquid- or air-cooling plates, and on BMS boards, to help keep battery modules within the optimal operating temperature range.
EV Charging Stations
Installed inside charging modules to quickly transfer heat generated by high-frequency switching and help prevent thermal derating.

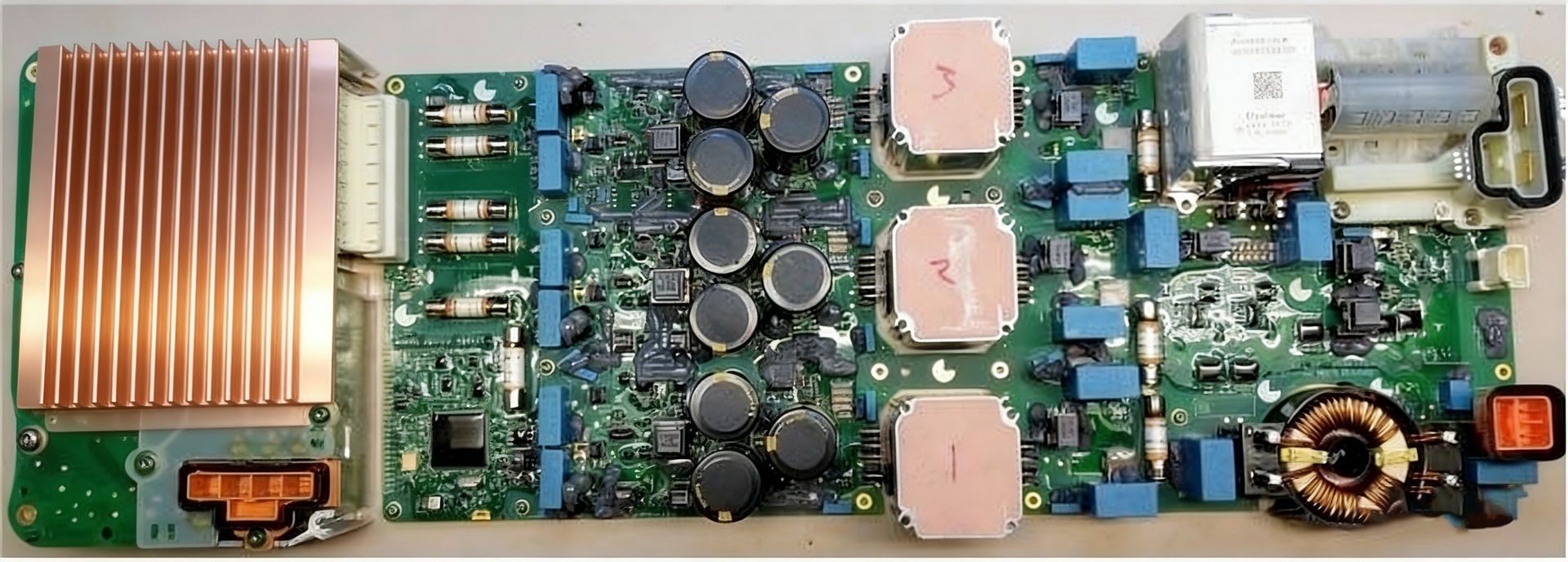

Thermal Management Inside PCS Units
Power Conversion System

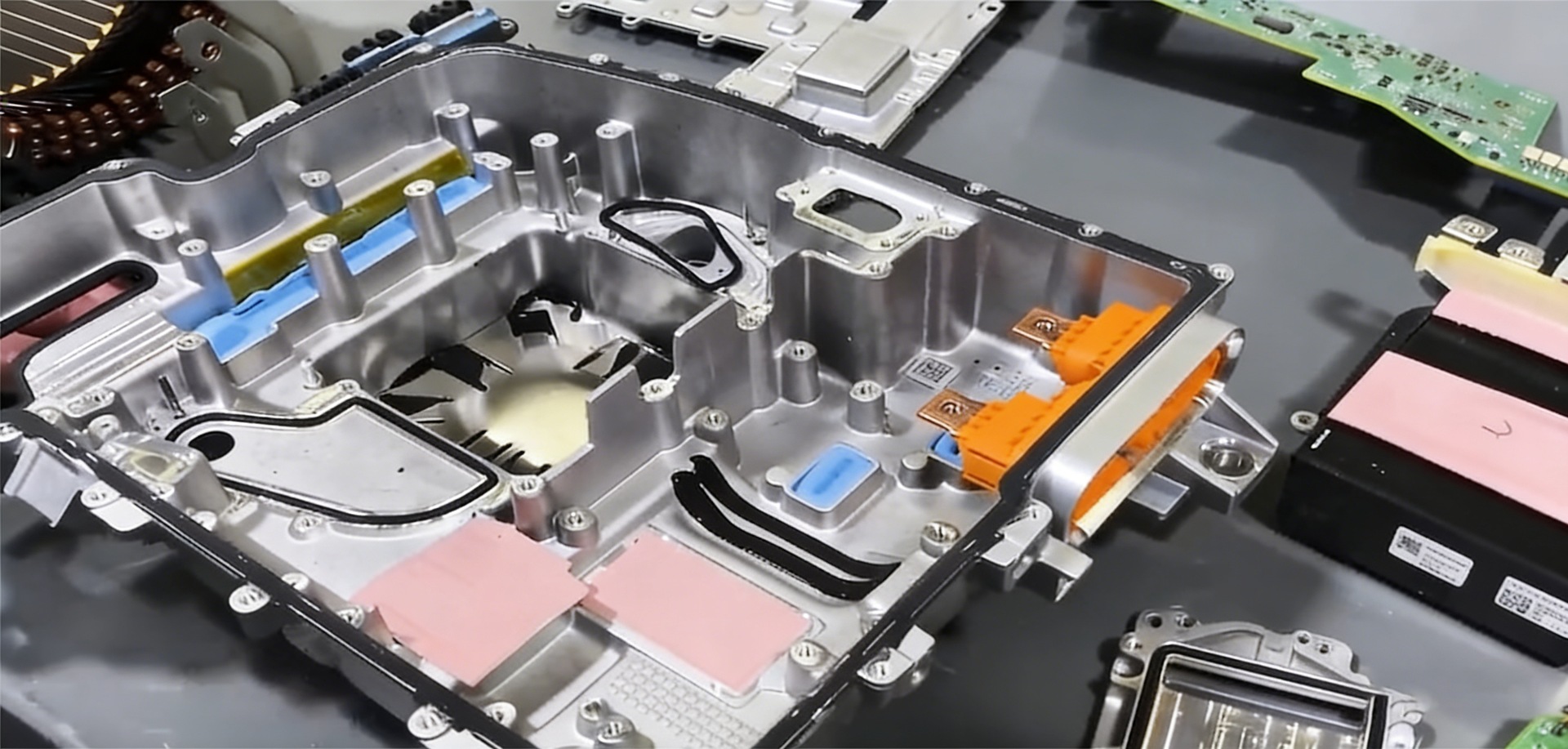

Thermal Management Inside EMS Modules
Energy Management System
Partner with Desunergy to Advance Thermal Interface Innovation
Whether you are an inverter manufacturer, an energy storage system integrator, or a partner seeking high-reliability thermal management materials, our team is ready to support you with tailored solutions.
