AlphaESS
Utility-Scale Storage Solutions
From 836 kWh to 5 MWh per unit, AlphaESS utility-scale BESS integrates with wind and solar power to stabilize grids, maximize renewable self-consumption, and support the global transition to carbon neutrality.
Efficient and Flexible
High Energy Density
High System Integration
External Maintenance Design
Product Portfolio
AlphaESS Utility-Scale Range
2 systems from 836 kWh to 5 MWh for grid-side, industrial, and renewable integration projects
Liquid Cooling Cabinet
STORION-LC 836
836 kWh
An outdoor liquid-cooled battery cabinet with multi-level safety protection and C5 anti-corrosion coating. Highly integrated for easy transport and fast installation at grid-side, industrial facility, island grid, and mining sites.
View Details
(545x562xiangsu)(2).png)
Liquid Cooling Container
ASTER 5000
Max. 5.015 MWh
A 5 MWh-class liquid-cooled container BESS with intelligent fire protection and IP67-rated battery packs. Cloud-based real-time monitoring supports grid stabilization, peak shaving, and renewable integration in extreme conditions.
View Details

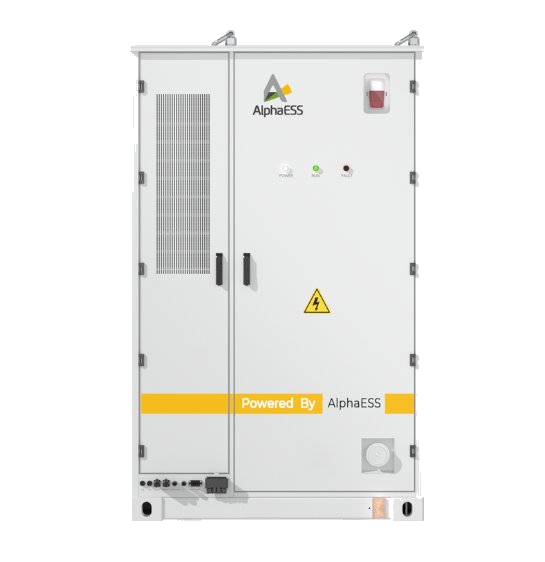

STORION-LC 836
836 kWh
418 kW
Liquid Cooling Container
This outdoor battery cabinet adopts advanced liquid cooling technology and offers a system capacity of 836 kWh, delivering stable performance for large-scale energy applications. With its highly integrated design, it enables easy transportation and fast installation. The system is equipped with multi-level safety protection, including cell-, module-, and cabinet-level protection, along with an optimized exhaust structure and multi-layer fuse design to ensure reliable operation. In addition, C5 anti-corrosion protection and high-efficiency bidirectional active balancing enhance durability and battery performance, making the STORION-LC 836 an ideal solution for grid-side projects, industrial facilities, island grids, and mining sites.
Product Materials
Key Features
Easy Transport
Fast Installation
Front Wiring Design
Multi-Level Safety
Flexible Expansion
Specifications
System
Nominal Capacity (8 Modules)
835.99 kWh
Rated Power (0.5 P)
418 kW
Rated Voltage (4 Modules/Cluster)
1331.2 V
Battery Chemistry
LFP (LiFePO₄)
Ingress Protection
IP55
Corrosion Resistance
C4 (Std) / C5 (Opt)
Operating Temperature
−30 ~ 50 °C
System Weight
7.5 t
Dimensions (W × D × H)
1450 × 2480 × 2435 mm
Fire-Fighting System
Aerosol Fire Suppression, Water Sprinkler, Venting Panels & Ventilation Fans
Battery Module
Battery Model
M332314-104S-EX
Rated Voltage
332.8 V
Nominal Capacity
104.49 kWh
Rated Power (0.5 P)
52.24 kW
Ingress Protection
IP67
Weight
670 kg
Dimensions (W × D × H)
790 × 2210 × 245 mm
ASTER 5000
Max. 5.015 MWh
Liquid Cooling Container
With the capacity of 5.015 MWh, ASTER 5000 uses advanced liquid-cooling for efficient thermal management and durability. Its integrated design simplifies installation, while external maintenance ensures easy upkeep. Equipped with intelligent fire protection and an IP67-rated battery pack, it excels in extreme conditions. Ideal for grid stabilization, peak shaving, and renewable integration, it offers monitoring via the cloud platform for real-time fault detection.
Product Materials
Key Features
Ultra Safe
High System Integration
Flexible Site Layout
External Maintenance Design
Specifications
System
Nominal Capacity
5.015 MWh
IP Protection
IP55
Battery Type
LiFePO₄
Application Model
Outdoor (Container)
Dimensions (L × W × H)
6058 × 2438 × 2896 mm
Battery Module
Module Model
M332314-104S-EX
Nominal Voltage
332.8 V
Module Capacity
104.4 kWh
IP Protection
IP67
Operating Temperature Range
−40 ~ 50 °C
