HanchuESS
C&I Energy Storage Solutions
Hanchu’s C&I energy storage solution for small businesses and commercial spaces delivers intelligent energy management through cutting-edge battery technology. It reduces energy costs, ensures reliable backup power during outages, and keeps operations running smoothly — all monitored remotely via the Hanchu Cloud platform.
Applications
Peak Shaving & Valley Filling
Emergency Backup Power Supply
Green & Sustainable Business Practice
Product Portfolio
HanchuESS C&I Range
3 commercial and industrial solutions covering hybrid inverters, high-voltage batteries, and scalable cabinet BESS
Three Phase
CESS-HY-25K/30K/
25–50 kW
4 MPPTs
Three Phase | Hybrid
A three-phase energy storage inverter custom-developed for commercial and industrial projects. Multiple power levels and multi-unit paralleling support offer greater flexibility for diverse load requirements.
View Details
High Voltage
CESS-HV-9.4K
28.2–112.8 kWh
High-voltage Battery
Provides 28.2 to 112.8 kWh of energy, easily meeting the electricity needs of small and medium-sized businesses. The high-voltage system delivers greater output power and more robust performance for loads.
View Details
CESS-418K-S
418 kW
Cabinet BESS
Grounded in the needs of commercial and industrial clients, delivering safe, intelligent, and efficient energy storage for peak shaving, emergency power supply, and dynamic capacity expansion.
View Details

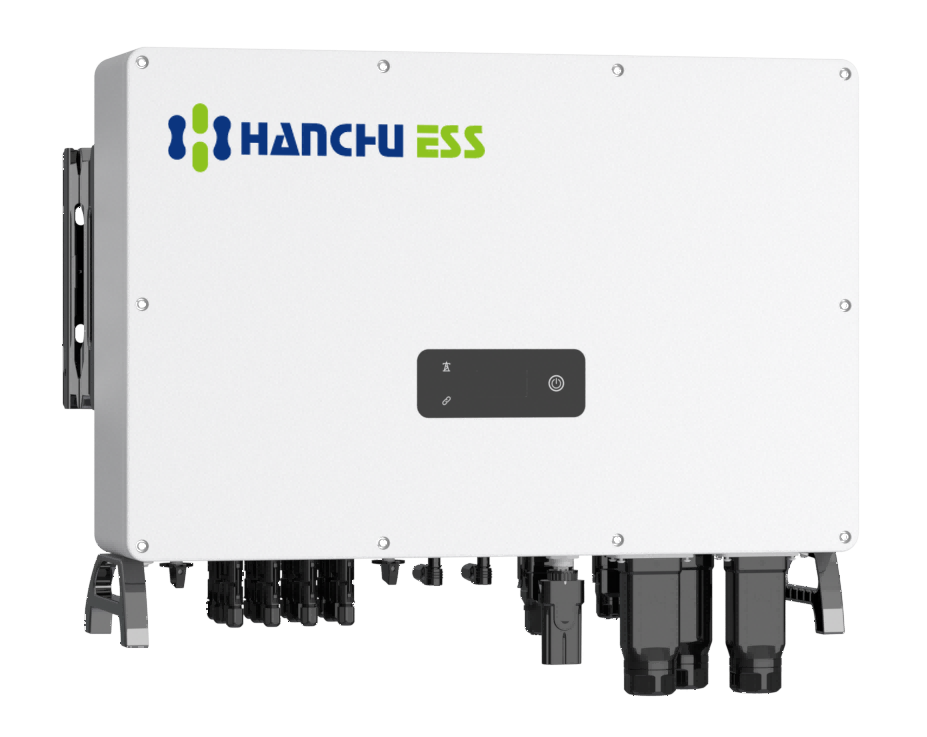

CESS-HY-25K/30K/36K/40K/50K
25–50 kW
Three Phase
4 MPPTs
Three Phase | Hybrid
The CESS-HY series is a three-phase energy storage inverter custom-developed for commercial and industrial projects. It offers various power levels of 25/30/36/40/50 kW, providing higher power output to ensure stable energy for loads. Multi-unit paralleling is supported, offering greater flexibility in choice.
Product Materials
Key Features
Multiple Protection Measures
Type 2 Surge Protection
UPS-Level Grid-tied & Off-grid Switching
Specifications
No. of MPPT / DC Inputs per MPPT
4 / 2
MPPT Voltage Range / Rated Input Voltage
200–850 / 620 V
Battery Voltage Range
135–750 V
Max. PV Input Current
30 A × 4
Rated Grid Side Output Power
25 kW
Max. Grid Side Output Apparent Power
27 kVA
Max. Grid Side Input Apparent Power
30 kVA
Rated Back-up Side Output Power
25 kW
Max. Switch Time
<20 ms
Ingress Protection
IP65
Certificates
—
* Specifications based on CESS-HY-25K. Consult the datasheet for other power ratings.

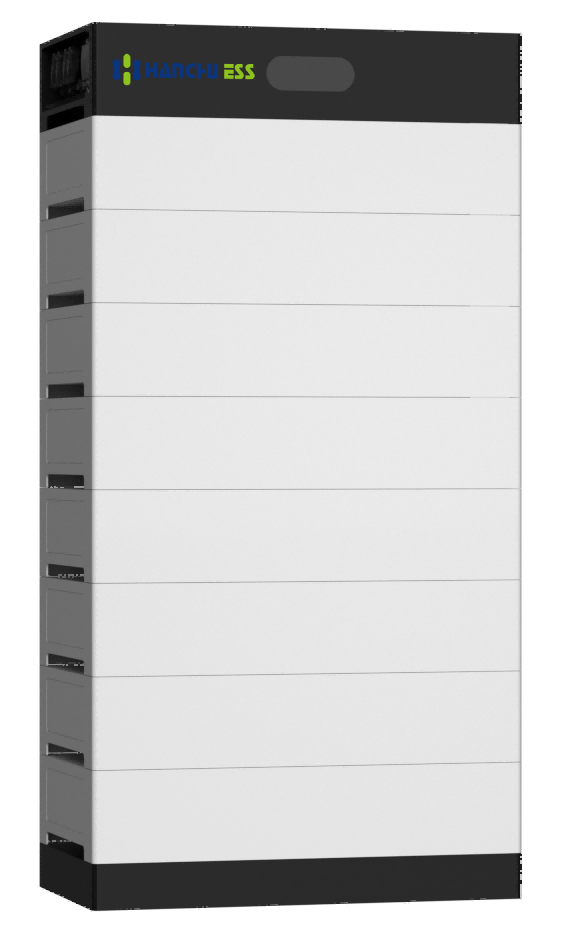

CESS-HV-9.4K
28.2–112.8 kWh
High Voltage
LiFePO4
28.2–112.8 kWh | High-voltage Battery
Provides 28.2 kWh to 112.8 kWh of energy, easily meeting the electricity needs of small and medium-sized businesses. The high-voltage system delivers greater output power, offering more robust performance for loads.
Product Materials
Key Features
Multiple Protection Measures
External Circuit Breaker
IP 65 Protection
Specifications
Nominal Energy
28.2–112.8 kWh
Nominal Voltage
153.6–614.4 V
Cell Type
LFP(LiFePO4)
Nominal Charge/Discharge Current
100 A
Max. Charge/Discharge Current
100 A
Depth of Discharge
95 %
Communication Port
CAN/RS485/
Ingress Protection
IP65
Certifications
IEC 62619 / CE / UN38.3

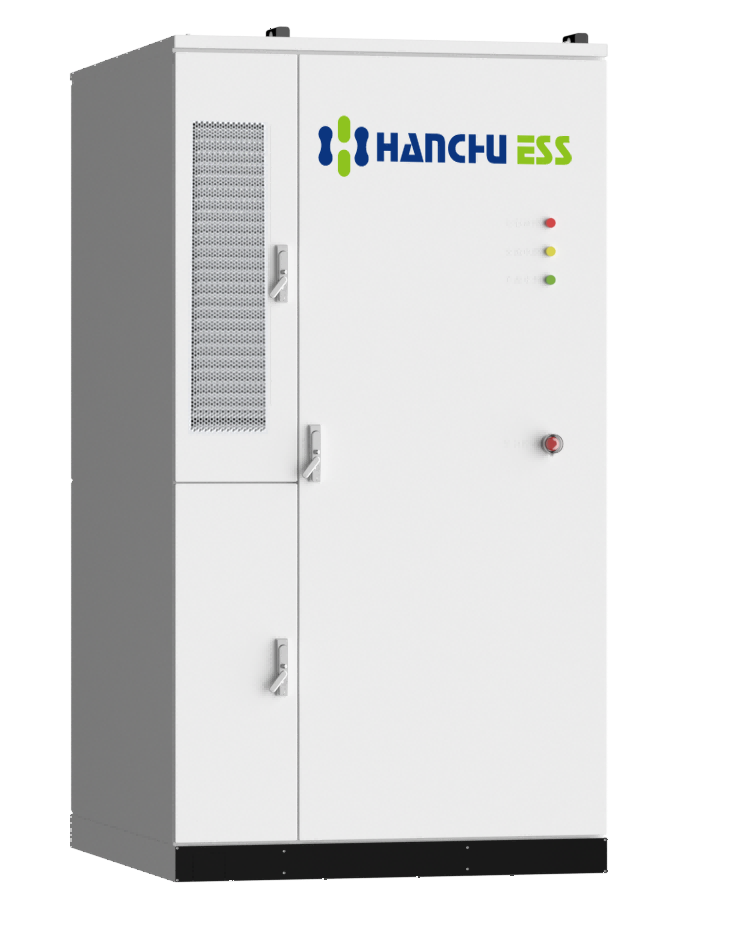

CESS-418K-S
418 kWh
LFP(280Ah)
IP54
Commercial & Industrial Energy Storage
Hanchu C&I energy storage solution is grounded in the needs of commercial and industrial clients. It leverages safe, intelligent, and efficient energy storage products to fulfill requirements such as peak shaving, emergency power supply, and dynamic capacity expansion. Additionally, it aims to reduce electricity costs for clients, ensure electrical safety, and optimize power grid configuration.
Product Materials
Key Features
Fire Protection Design
Modular Design
Flexible Configuration
Integrated Design
Specifications
Capacity
418 kWh
Nominal Voltage
1331.2 V
Operating Voltage Range
1164.8–1497.6 V
Cell Type
LFP(280Ah)
Nominal Charge/Discharge Current
140 A
Weight
3500 kg
Charge Temperature
0~55 °C
Discharge Temperature
-20~50 °C
IP Rating of Enclosure
IP54
Communication
Ethernet / RS485
Dimension (W×D×H)
1250 × 1350 × 2346 mm
