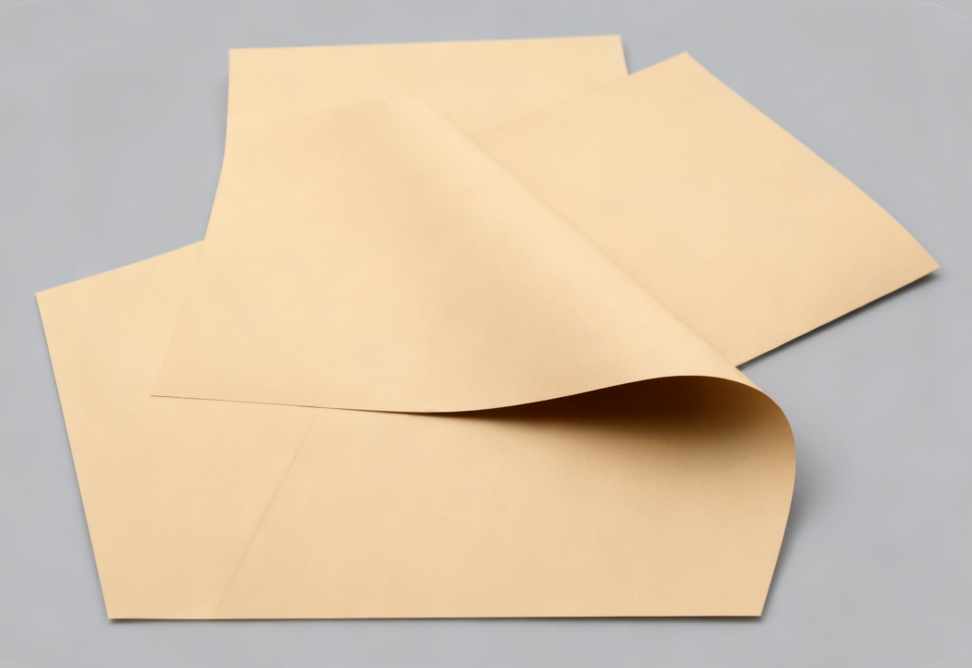

DSP-K10
INSULATOR PAD · DSP-K10
Insulator Pad
A high-performance thermally conductive insulator pad that combines electrical isolation with heat transfer, engineered for inverters, energy storage systems, and power electronics equipment. In suitable applications, it can serve as a replacement option for Bergquist K-10.
Get Product Resources
Key Parameters Parameters
Dielectric Breakdown Voltage
≥
6.0
kV/mm
Volume Resistivity
1012
Ω·cm
Thermal Resistance
<
0.5
°C·in²/W (at 30 PSI)
Tensile Strength
30
MPa
Operating Temperature
-40 ~ 180
°C
Flame Rating
V-0
Key Properties
- Flexible and conformable
- Wide-range thermal conductivity and dielectric strength options
- Anti-cut reinforced structure
- Multiple thickness options
Material Advantages Advantages
APPLICATION SCENARIOS
Application Scenarios
Desunergy DSP-K10 insulator pads are widely used for insulated thermal mounting of power components in core new energy equipment. Their strong electrical isolation and low thermal resistance help ensure long-term safe and stable system operation.
Inverters
Insulated thermal mounting between IGBT / MOSFET devices and heat sinks to help prevent thermal derating while isolating high-voltage circuits.
PCS Power Conversion Systems
High-voltage isolation between PCS power units and liquid cold plates to support safe operation under high current-density conditions.
Battery Management Systems
Insulated heat dissipation between BMS heat-generating components and housing, helping isolate high-voltage circuits and extend module service life.
Hybrid Solar-Storage Units
Insulation between AC/DC terminals and chassis to help prevent leakage current and improve the overall safety level of integrated solar-plus-storage systems.

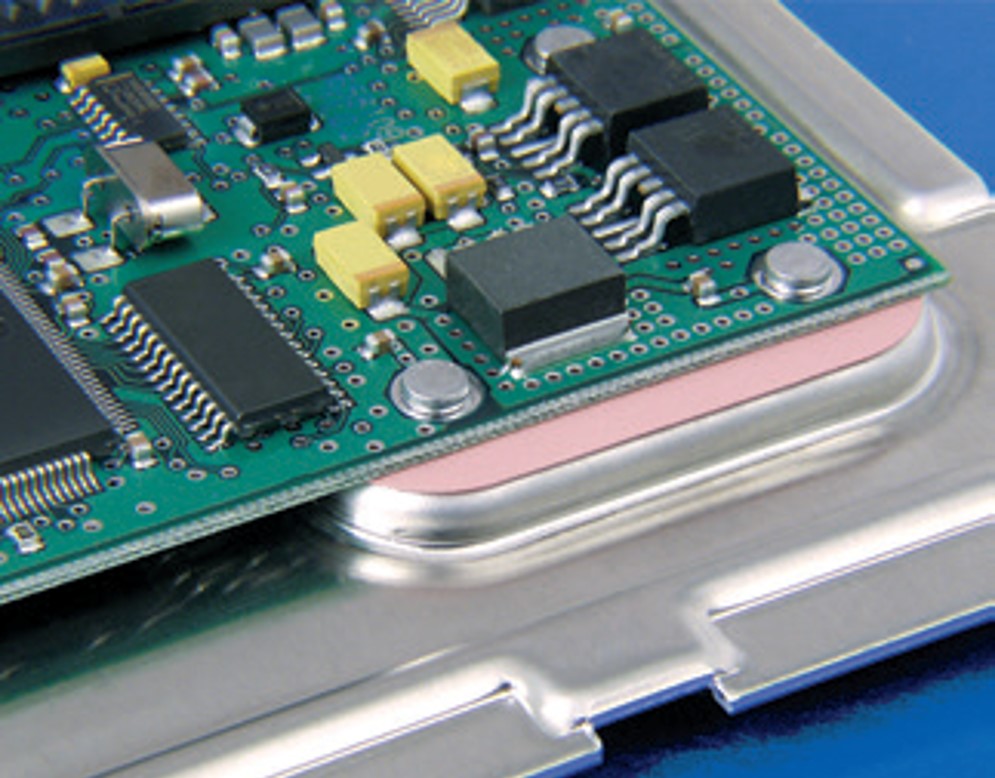

Insulated Thermal Mounting for IGBT and MOSFET Devices
Inverter · IGBT/MOS Insulation and Thermal Management

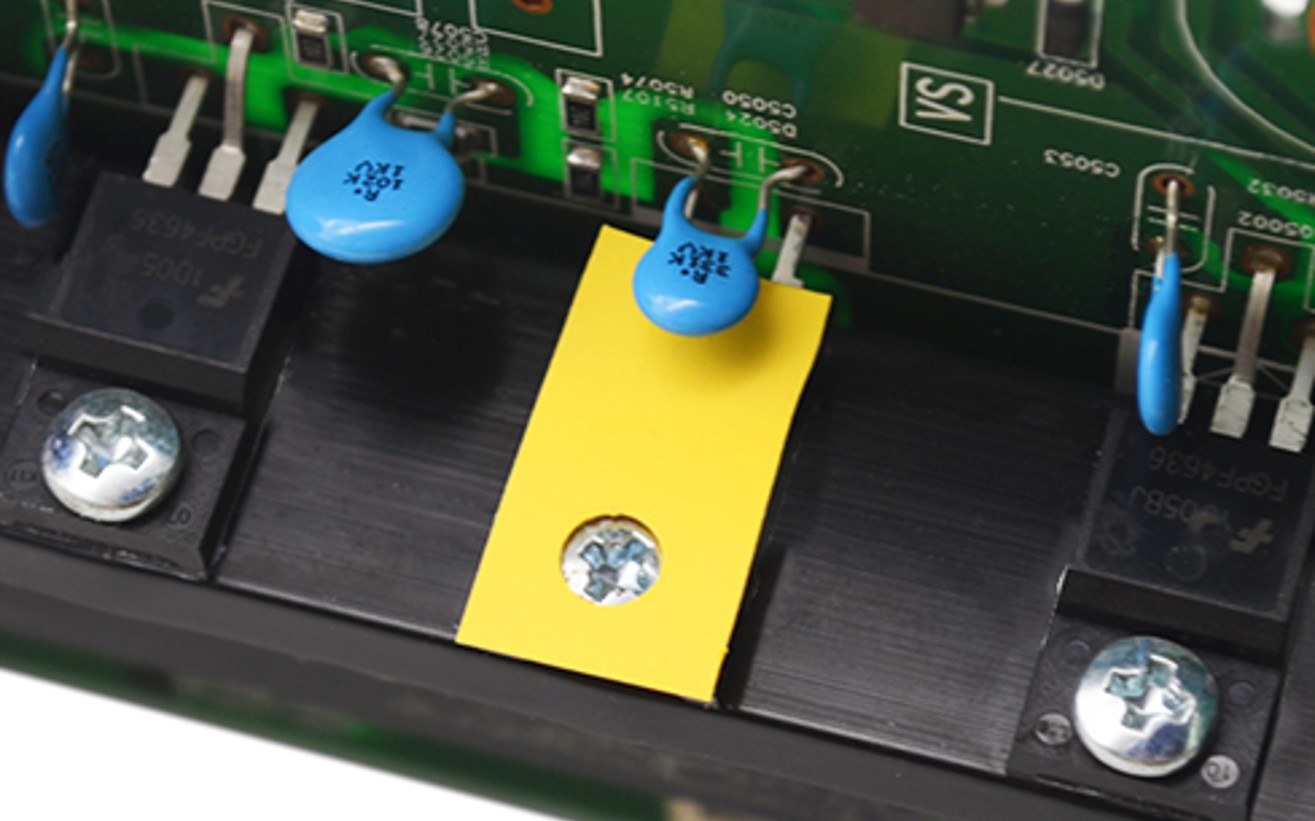

High-Voltage Isolation for PCS Power Modules
PCS · Liquid Cold Plate Isolation and Thermal Management
Partner with Desunergy to Advance Thermal Interface Innovation
Whether you are an inverter manufacturer, an energy storage system integrator, or a partner seeking high-reliability thermal management materials, our team is ready to support you with tailored solutions.
