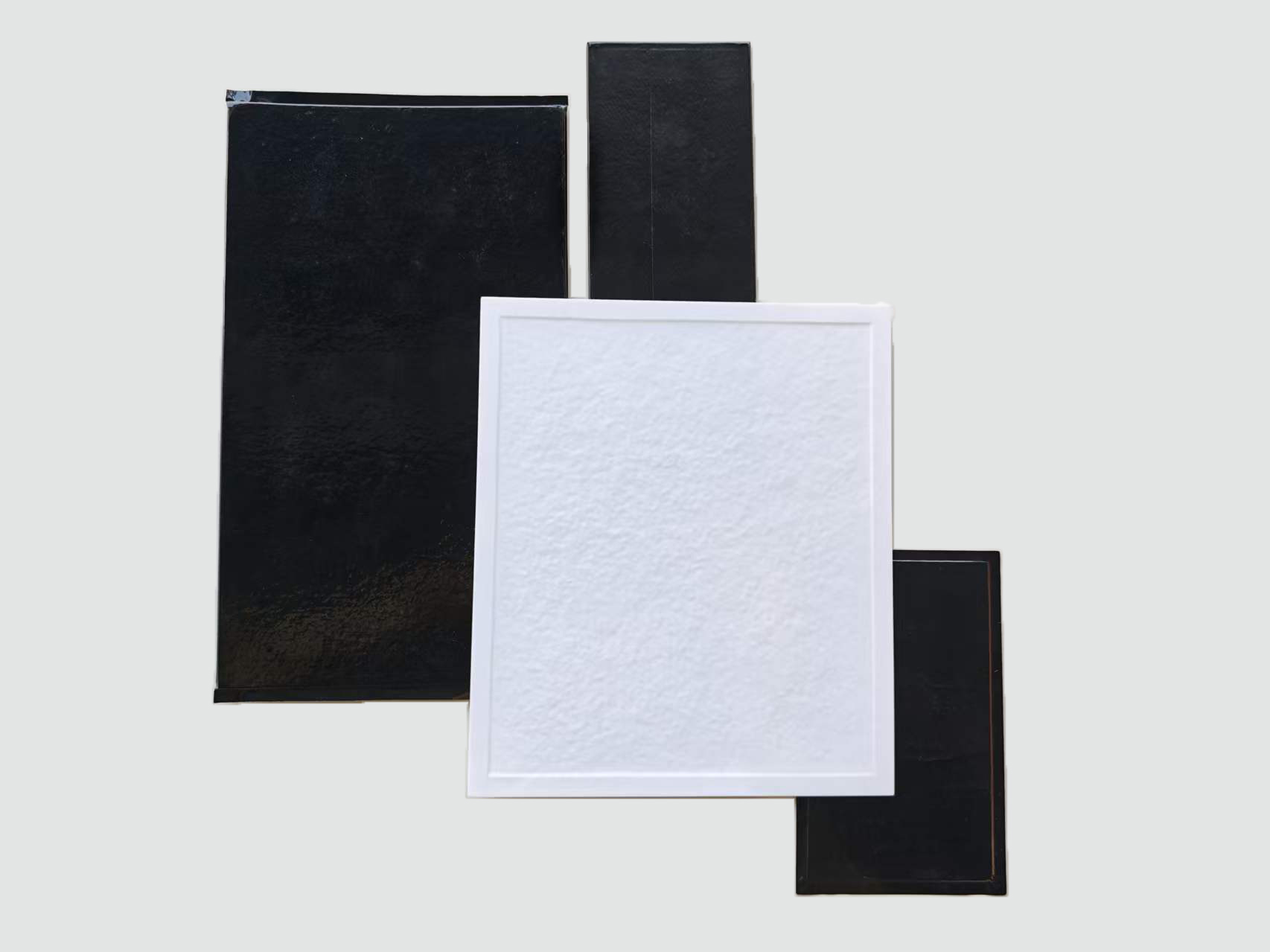

DSA Series
AEROGEL INSULATION MATERIALS
Aerogel Insulation Panel
A solid insulation material with a nanoporous network structure and porosity exceeding 90%, offering ultra-low density and outstanding thermal insulation performance.
SUBSTRATE OPTIONS / SUBSTRATE TYPES
PACKAGING PROCESS / PRODUCT FORMS
Key Parameters Parameters
Thermal Conductivity
<
0.035
W/m·K @ 25°C
Specific Heat Capacity
>
0.20
J/g·°C
Compression Dimensional Change
1.5
%
Compressive Stress Retention
≥
50
%
Flame Rating
V-0
Key Properties
- Ultra-low thermal conductivity with industry-leading insulation performance
- Extremely high porosity (>90%) with a nanoscale porous network structure
- Ultra-low density for lightweight system design
- Very high specific surface area with an extended heat transfer path
- Excellent hydrophobicity for resistance to moisture exposure
- Class A non-combustibility for stringent fire protection requirements
- Wide operating temperature adaptability across multiple service conditions
PRODUCT SERIES
Product Series
The DSA Series includes three product forms designed for different structural and process requirements, supporting thermal insulation needs in energy storage battery packs, inverters, and related applications.

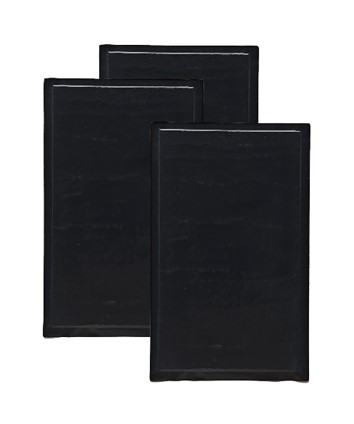

DSA-H
Hot-Press Aerogel Insulation Panel
Composite of aerogel insulation blanket and polymer film, bonded using a lamination process.
Structure
Polymer Film (Top)
Aerogel Insulation Blanket (Core Layer)
Polymer Film (Bottom)
Available Substrates

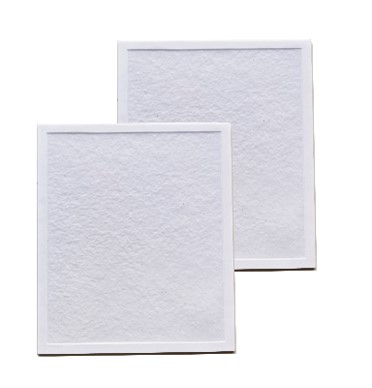

DSA-F
Silicone-Frame Aerogel Insulation Panel
Composite of aerogel insulation blanket, polymer film, and a silicone frame, bonded using a lamination process.
Structure
Polymer Film (Top)
Aerogel Insulation Blanket (Core Layer)
Polymer Film (Bottom)
Silicone Frame (Perimeter Seal)
Available Substrates

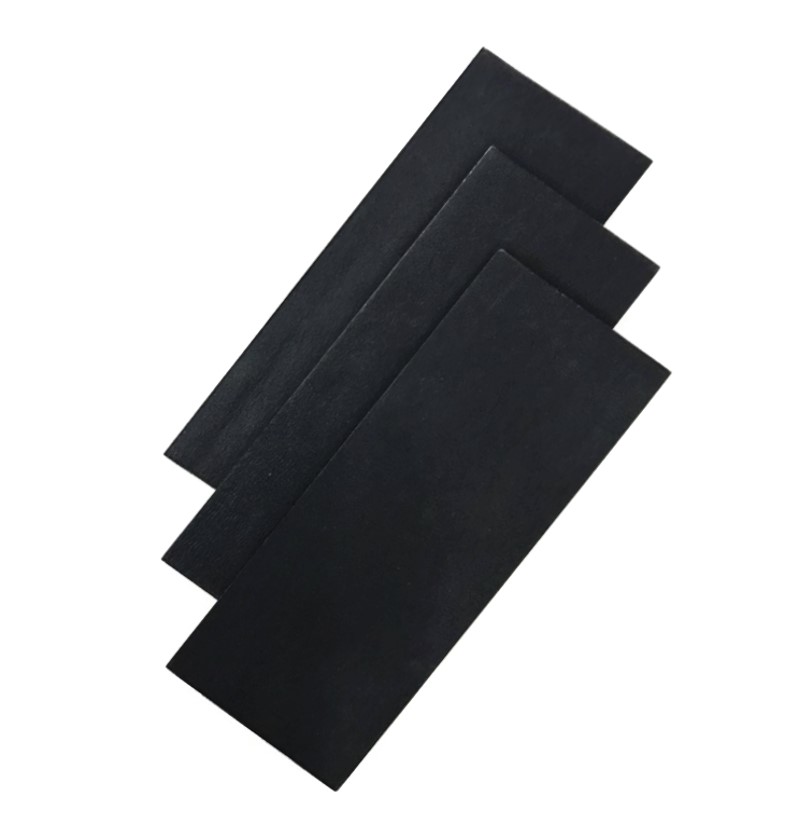

DSA-C
Coated Aerogel Insulation Panel
Aerogel insulation blanket processed with a polymer coating.
Structure
Polymer Coating (Top Surface)
Aerogel Insulation Blanket (Core Layer)
Polymer Coating (Bottom Surface)
Available Substrates
APPLICATION SCENARIOS
Application Scenarios
DSA Series aerogel insulation panels provide full-chain thermal barrier protection inside energy storage battery packs and inverters, helping suppress thermal runaway propagation and improve overall system safety margins.
Cell-to-Cell Thermal Isolation
Thermal runaway barrier pads that help block heat propagation between adjacent cells
Module Side Panel Insulation
Thermal equalization and blocking layers for more stable module temperature distribution
Pack Top Cover Fire Protection
High-temperature fire-resistant blankets for top-cover fire protection
Inverter Housing Insulation
Radiant heat shielding to reduce housing surface temperature
Hybrid Solar-Storage Unit Isolation
Thermal barrier between battery and inverter to reduce mutual thermal interference

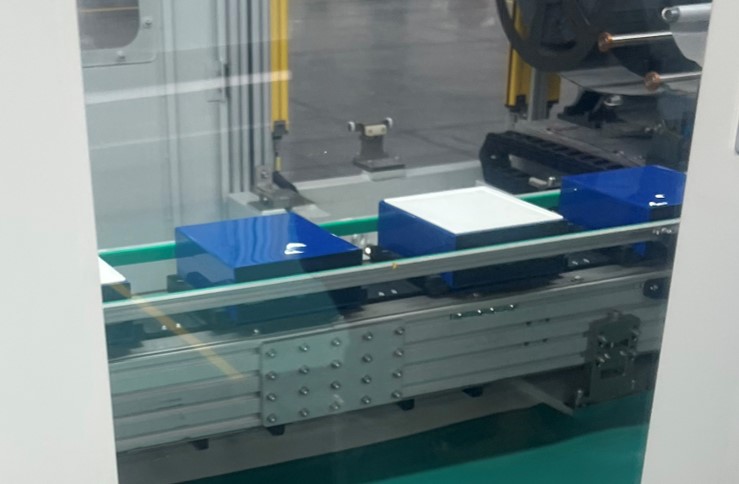

Cell-to-Cell Thermal Isolation Inside Battery Packs
Cell Insulation in Battery Packs

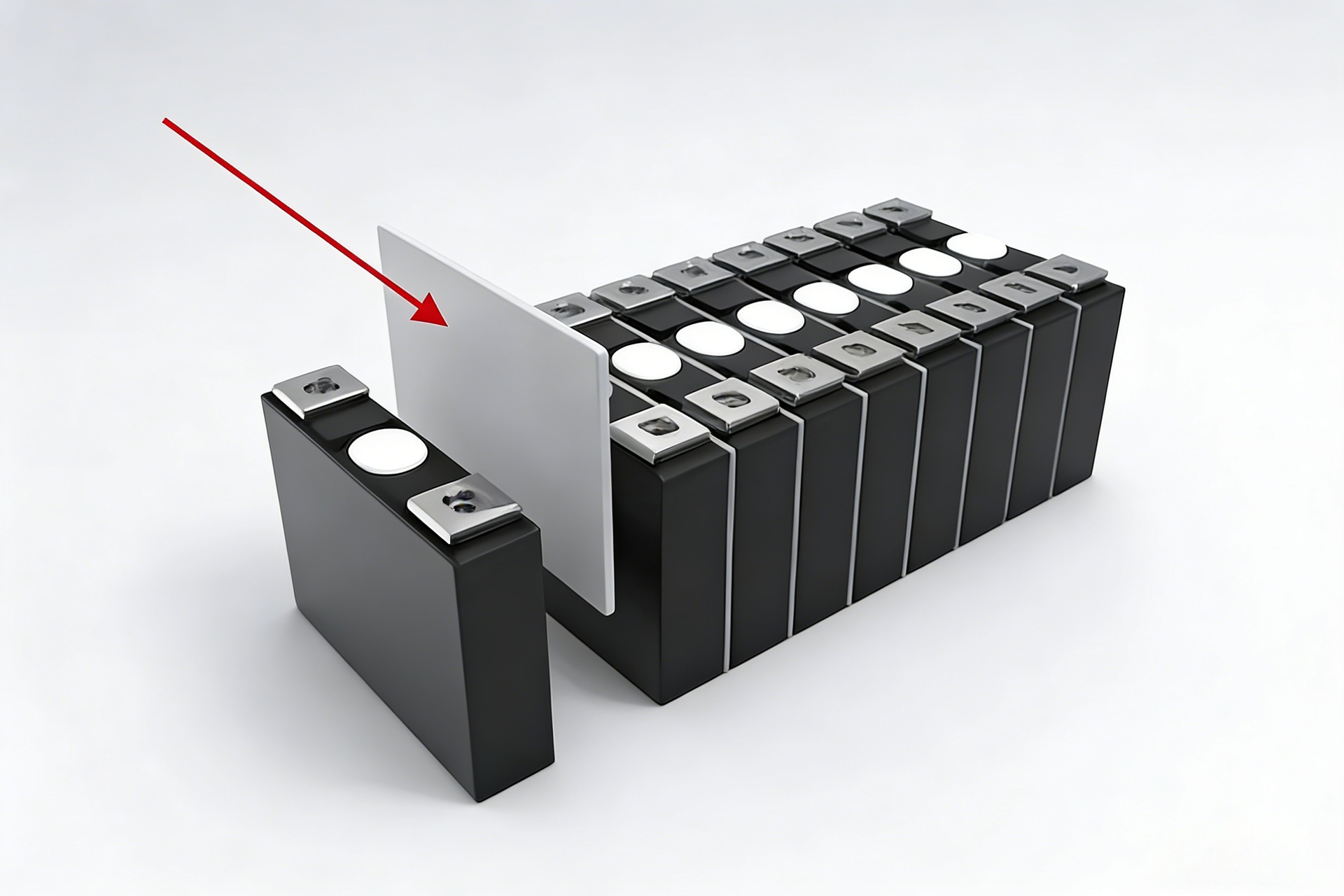

Thermal Barrier Protection for Inverters and Hybrid Units
Hybrid Solar-Storage Thermal Barrier
